Abnormality Types

Abnormality types are used to record a list of abnormalities on a test result. The choice of values are selected using an autocomplete list.

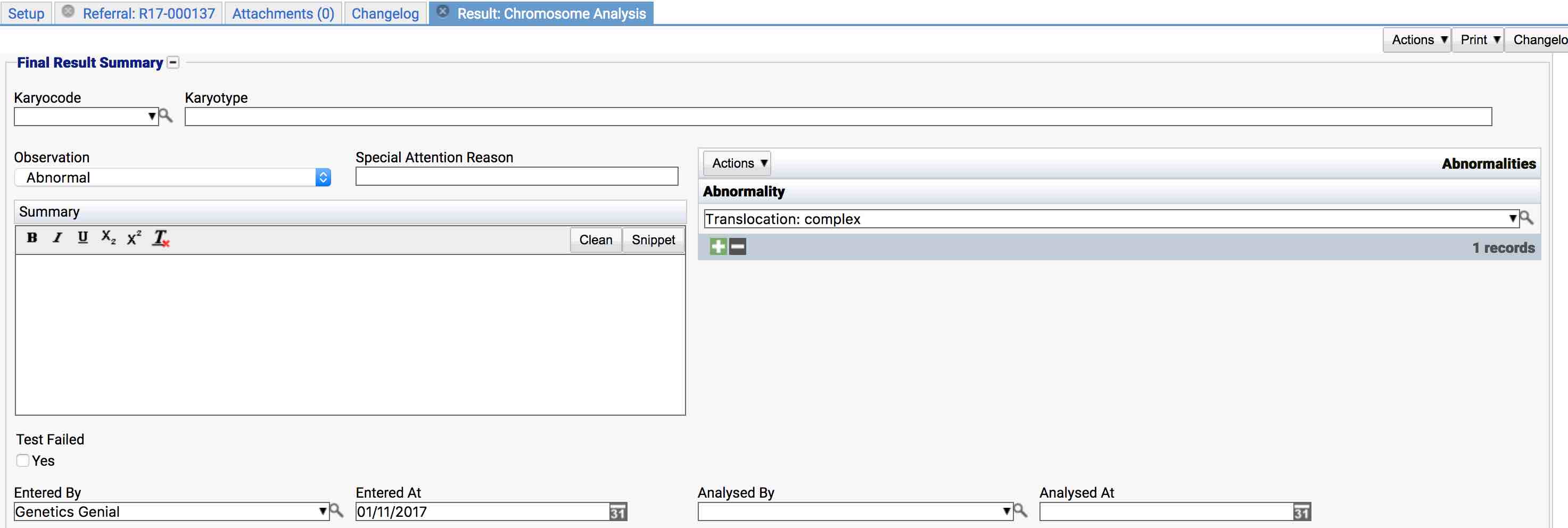

Abnormality Example

Abnormality types can be specified per organisation unit or for the entire application.

Location

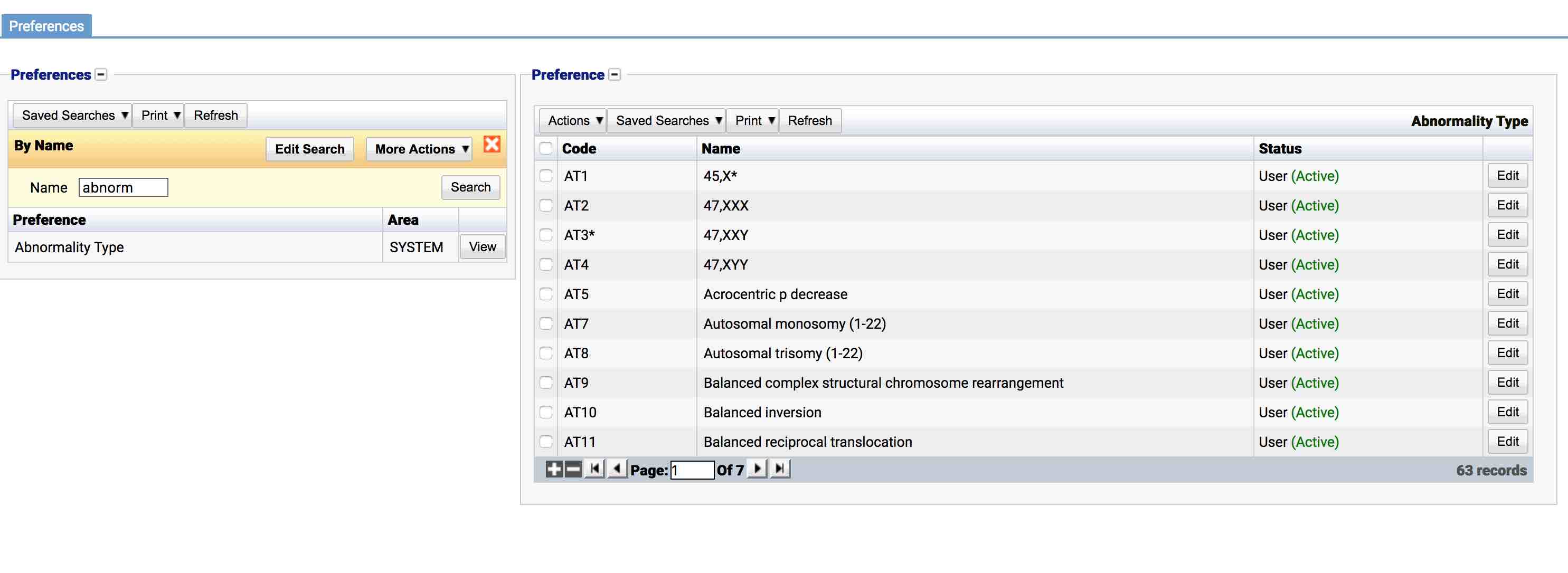

Abnormality List

The table of Abnormality Types will display the code, name and status for the abnormality type.

Configuration

When adding or editing an abnormality type, users are presented with the below form to complete.
Always press Save in the bottom right hand corner of the browser after adding or editing an abnormality type.

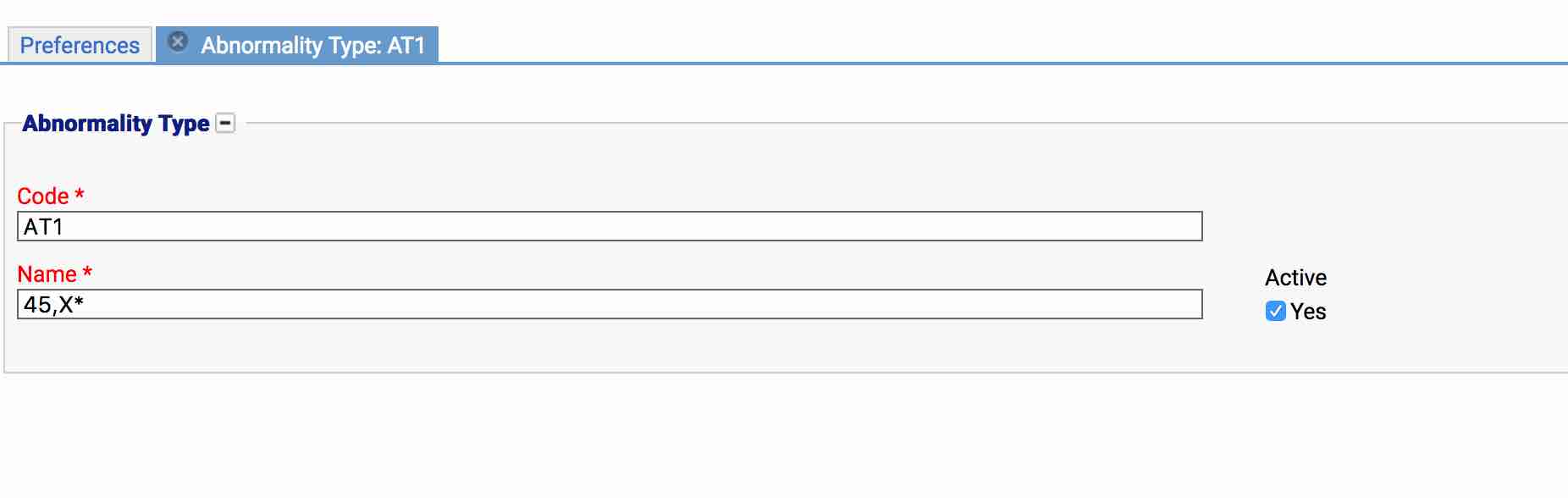

Abnormality Edit

Code (Required, Unique)

A unique code for the abnormality type. This can be the same as the name but must be unique throughout the entire system.

Name (Required)

A name for the preference. It is advisable to keep this unique.

Active

A checkbox to activate/deactivate an entry. If the preference is not active, it will not be able to be selected for future result but it will still show for existing results.

Usage

The Abnormality Type preference is used with the following items:

graph LR; A(ChromosomeAnalysis) B(ChromosomeAnalysisAbnormality) C(AbnormalityType) A --> |abnormalities| B B --> |abnormalityType| C
graph LR; A(GenericTest) B(GenericTestAbnormality) C(AbnormalityType) A --> |abnormalities| B B --> |abnormalityType| C
graph LR; A(CustomTest) B(CustomTestAbnormality) C(AbnormalityType) A --> |abnormalities| B B --> |abnormalityType| C
graph LR; A(FishResult) B(AbnormalityType) A --> |abnormality| B
